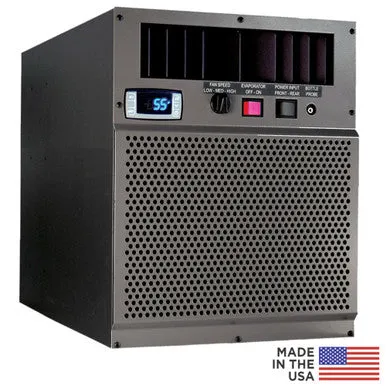

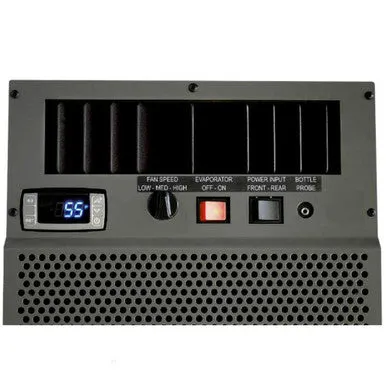

CellarPro engineered the 3200VSi-ECX cooling unit to provide maximum cooling power and adjustable humidity control for cellars up to 800 cubic feet. Designed for internal installations, 3200VSi-ECX units are built with variable-speed fans with a low setting for super-quiet operation, and high-output Danfoss compressors and oversized coils for maximum performance in high-temperature environments up to 110F.
Dimensions - 14 1/10w x 25 1/10d x 19 3/5h (in)
Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit. Thermal load may be affected by glass in the cellar, room positioning or other factors. Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.
***** Additional Information *****
3040 SENSIBLE BTUH @ 55F.
CellarPro's 3200VSi-ECX cooling units (1/3 Ton Nominal) are engineered for wine cellars up to 800* cubic feet in both commercial and residential wine cellars.
***** Technical Specs *****
Weight: 130 lbs
Power/Rating:
115V AC / 60 Hz
Compressor Amps:
- Startup: 30.0 Amps
- Unit Amp Rating: 8.9 Amps (high fan speed)
BTUH @ 55F / Decibels:
- Low Fan Speed: 2487 / 54 dBA
- Medium Fan Speed: 2876 / 58 dBA
- High Fan Speed: 3040 / 66 dBA
- 1/3 Ton Nominal
- Total Watts: 500 (med fan speed)
***** Product Manuals *****
***** Shipping Information *****
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra might be extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
***** Warranty *****
A limited 2-year product warranty is offered entire system from date of purchase.
IMPORTANT NOTE: Be sure to have the installing technician complete the CellarPro checklist upon installation. You will then send this to Cellar Pro to activate your warranty.
