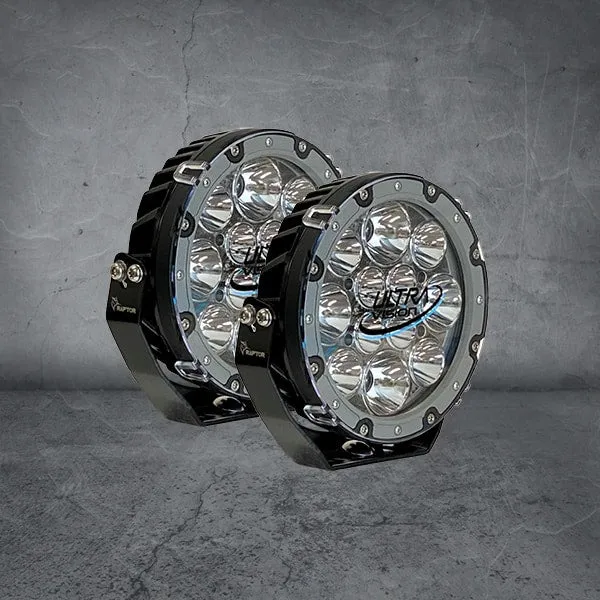

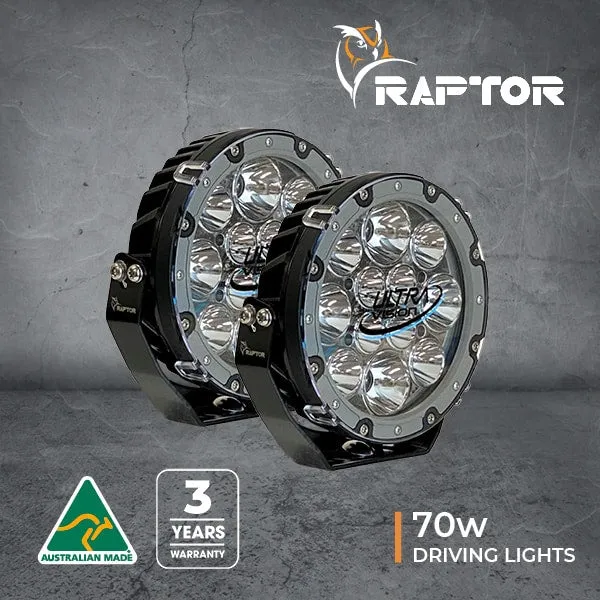

7-inch LED Driving Light (Pair)
The RAPTOR LED Driving Lights feature a high pressure die-cast aluminum housing, high impact polycarbonate lens and grey rims as standard. The superior optic designs give a combination beam with both good distance and width from one lamp type.
All RAPTOR driving lights come with a grey rim as standard, along with a protective lens cover, easy-adjust mounting bracket, wiring harness and stainless-steel brackets. To make sure you get the right option for your own driving comfort, the lamps are available with either 4000k or 5700k Colour Temperature.
All Raptor products are manufactured in Australia and covered by a 3-year warranty, adding total peace of mind.
- Made in Australia – Designed and built for the toughest environments on earth
- Available with either 4000k or 5700k Colour Temperature

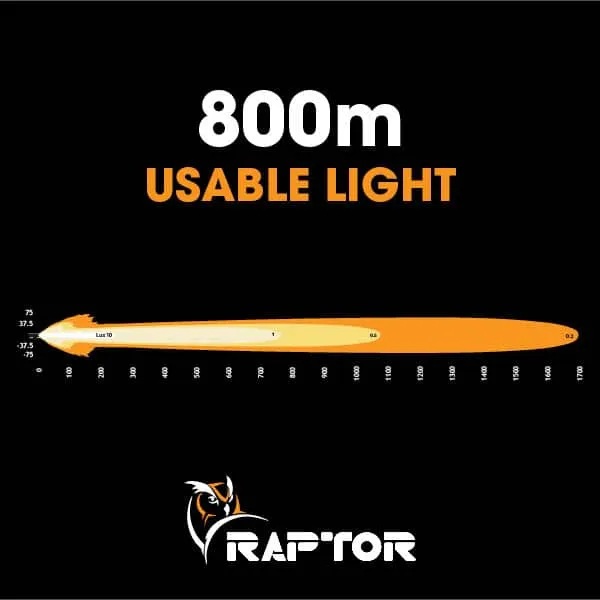

- 800m usable light
- 3 Year Warranty
- Lifetime warranty on all brackets
- Wiring Harness included
Beam Patterns
Product Specification
| SPECIFICATIONS | RAPTOR 70W |
|---|---|
| Wattage | 70W (per lamp) |
| Light Source | 12 x 6W LED’s (per lamp) |
| Light Output – Raw | 16,400 Lumens (per pair) |
| Light Output – Effective | 13,284 Lumens (per pair) |
| Voltage | 9-36V |
| Current Draw | 10A @ 13.5V (per pair) |
| Operating Temperature | -40°C to 80°C |
| Waterproof rating | IP68 |
| Connector Type | 2 Pin Heavy Duty Deutsch |
| Housing | Die-Cast aluminium |
| Lens Construction | Polycarbonate |
| Bracket | Stainless Steel |
| Colour Temperature | 4000K or 5700K |
| Lifespan | 50,000 Hours |

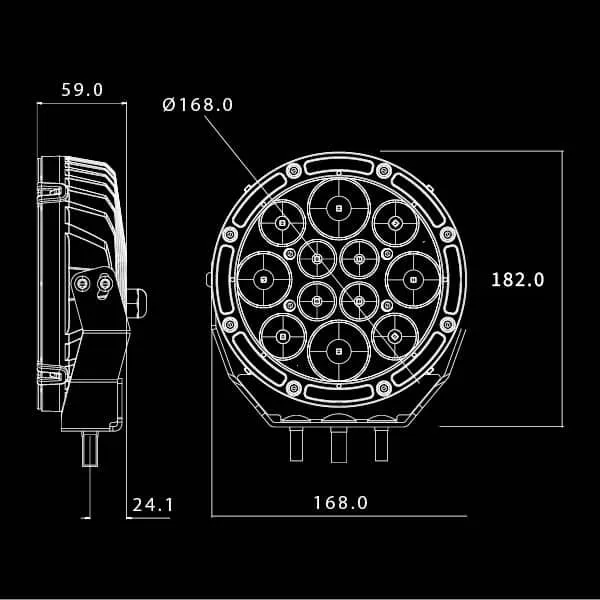

| Diameter | 170mm |
| Net Weight | 1.3kg (per lamp) |
| Mounting Suitable | Stainless Steel Bracket |
| Beams Available | Combo |
| Warranty | 3 Years |
| Hi/Lo Wiring Harness included | Yes |
| PART NUMBERS | |
| Raptor 70 4000K | RAP070DL4V2/PR |
| Raptor 70 5700K | RAP070DLV2/PR |
